DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area

Name: DIKAI D03S 32mm Thermal Transfer Overprinter with AC100240V 5060Hz Power and 6bar90psi Air Supply for 32x60mm32x100mm Print Area
Brand: Dikai
Price: 2 USD

DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area Manufactures

Place of Origin : Shanghai, China

Brand Name : Dikai

Certification : CE, ISO

MOQ : 1

Price : $2,700-3,000

Voltage : AC100-240V 50/60Hz

Print Head : 32mm, 300dpi

Print Area : Intermittent: 32*60mm, Continuous: 32*100mm

Print Frequency : ≤300times/min

Max Ribbon Length : 500m

Ribbon Width : 22mm~33mm

Interface : USB, RS232, Network

Power Supply : AC100-240V 50/60Hz, 150W

Air Supply : 6bar/90psi (max), dry, clean

Operation Temperature : 0-40℃

Relative Humidity : 10%~95% (non-condensing)

Print Unit Weight : 8.5kg

Controller Box Weight : 2.0kg

Print Unit Dimensions : 188*190*180mm

Controller Box Dimensions : 210*180*155mm

Contact Now

Product Overview

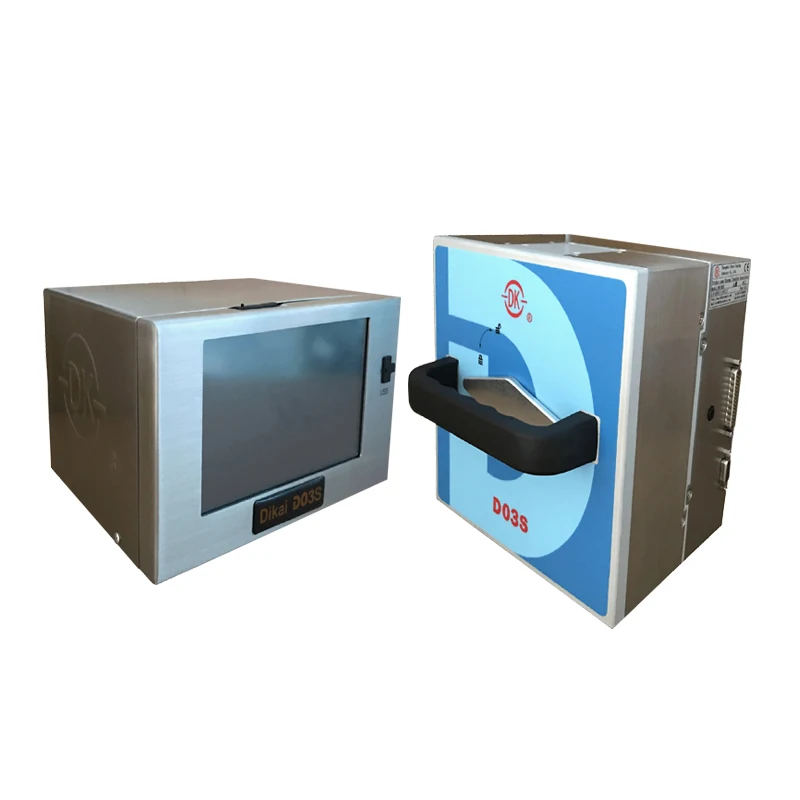

DIKAI D03S Thermal Transfer Printer

DIKAI D03S Thermal Transfer Printer was designed by our own R&D department. We spent 4 years to finish this project. It's intermittent and continuous mode combined in one machine, suitable for both horizontal and vertical packing machines. D03S adpots 300dpi printhead to print bar codes, QR codes, best before dates, real time, graphics, pictures, logos and other variable information directly onto packaging, substrate and other materials. The size, position and content of information can be fixed or
altered at the D03S user interface.

Features

-- Continuous & Intermittent
-- 32mm Kyocera Printhead;
-- real time, variable date, etc.
-- 300 DPI
-- Low cost
-- Easy to operate

DIKAI D03S 32mm Thermal Transfer Overprinter with AC100-240V 50/60Hz Power and 6bar/90psi Air Supply for 32x60mm/32x100mm Print Area

32mm Printhead

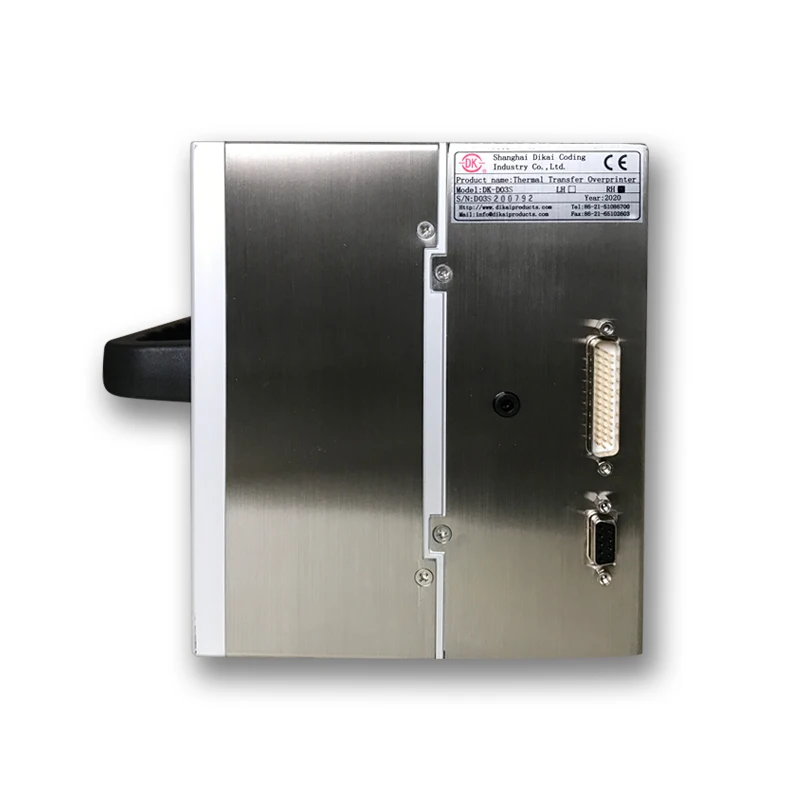

Interface

Product Specification

Specification
Print Head	32mm, Kyocera; 300DPI
Print Area	Intermittent: 32mm60mm Continuous: 32mm100mm
Ribbon Size	33mm*500m
Print Frequency	intermittent: up to 350PPM Continuous: up to 40 meters/minute
Power	AC110~220V, 50/60Hz, 150W
Environmental Operation Temperature	0-40℃
Relative Humidity	10%~95%(non-condensing)
Air Supply	6bar/90PSI(MAX) dry uncontaminated
Weight	Print head: 8.5kg, Control box: 2.0kg
Dimension(LWH)	Print Unit: 188mm190mm180mm Controller box: 210mm180mm155mm

Attention: Attention: The prices shown on Alibaba are not final prices, please consult us for proper solutions for you.

After Sales Service

Technical Supports

--R&D supports;

--Operation Manual Guidance

--Within 24-hour professional online supports

--Video supports

--Possible onsite supports...

Packaging & Shipping

Related Products

Company Introduction

Shanghai Dikai Coding Industry Co.,Ltd

Shanghai Dikai Coding Industry Co., Ltd was founded in 1995, and Dikai has dedicated itself to comprehensive coding solutions provider with R&D, innovation, manufacturing, sales & service of quality coding machines & consumables like TTO, Ink Roll Coder, TIJ, CIJ, Laser, Hot Stamp Coder, Carton Coding Machine, Ink Roll, Ribbon, etc.

Our headquarters is located in Shanghai, China, we have 16 branches offices and many authorized distributors in domestic, serving more 4,000 end users, over 200 packing machinemanufacturers. Our products have been exported to more than 100 countries and regions since 2006.

DIKAI Vision: To be renowned ID system integrator in the world
DIKAI Values: Customer's benefit comes first

Office

Inside Company

Warehouse

Factory

1. 5S management 2. Strict quality control

3. Clear operate instructions 4. Regular training of workers

TTO Workshop

Over 1000 sets per month

Ink Roll Coder Workshop

Over 1500 sets per month

Laser Workshop

Over 80 sets per month

Certification

CE Certification

ISO Certification

Exhibition

Allpack Indonesia

Andina Pack

ICE CREAM CHINA

Open Cooperation

FAQ

1.Why choose Dikai?
-- Our company has dedicated to development, manufacturing and sales of qualified coding machines and consumables for 25 years. Meanwhile, we commit ourselves to satisfy every customers' different needs in coding and marking area.

2.What’s the regular lead time for Dikai Products?
--Lead time for all Dikai good is 1-2 weeks after order confirmation. For the stocked goods, delivery can be made in 2 working days.

3.What's the warranty of Dikai goods?

--Regularly 12 months after leaving Dikai Warehouse.

4.How about your after-sales service?
--For the countries where we have distributors, we depend on our distributor to do after sales services. Dikai also provide online technical services besides of continuously upgraded video supports.
